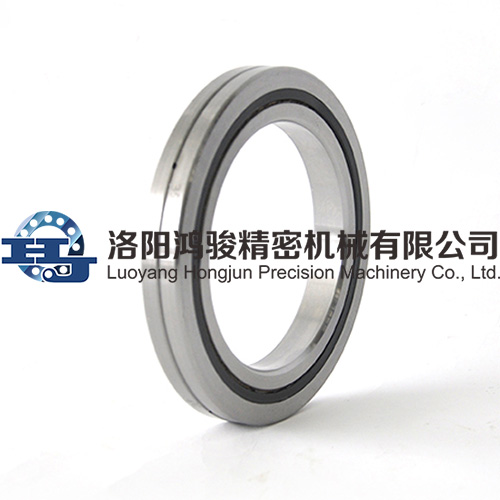

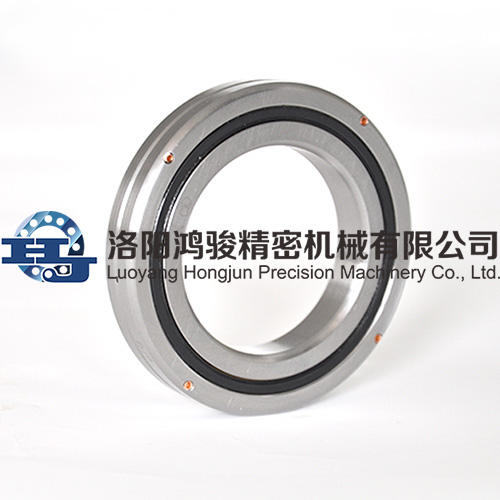

RB系列交叉滾子軸承（內圈整體、外圈分體）
RB型此型號為交叉滾子軸承的基本型。外圈被分為兩片，內圈為整體結構，它最適合用于要求內圈旋轉精度的場合。
交叉圓柱滾子軸承的結構分為外圈分體、內圈整體；外圈整體、內圈分體和外圈內圈均為整體三種形式，滾動體為圓柱滾子，互為90°垂直排列在V型滾道中，滾子之間由隔離塊隔開。這種結構使得單個軸承就可以承受軸向載荷、徑向載荷和傾覆力矩等各方面的載荷。同時，由于外形尺寸被最大的微型化，且軸承又具有很高的剛性和旋轉精度以及復合承載能力，所以最適合于工業用機器人的關節部或旋轉部、加工中心的旋轉工作臺、機械手旋轉部、精密旋轉工作臺、醫療機器、測量儀等場合應用。
參數：

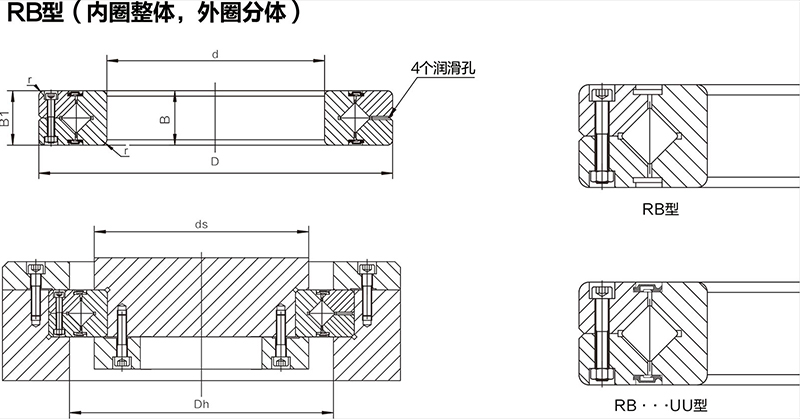

| RB型（內圈整體、外圈分體） | 單位：mm | |||||||||
| 公稱型號 | 主要尺寸 | 軸肩尺寸 | 基本額定載荷（徑向） | 質量 | ||||||
| 內徑 | 外徑 | 滾子節圓直徑 | 高度 | 倒角 | Cr | Cor | ||||
| d | D | Dpw | B B1 | rmin | ds | Dh | kN | kN | kg | |
| RB2008 | 20 | 36 | 27 | 8 | 0.5 | 22.8 | 31.2 | 3.23 | 3.1 | 0.04 |
| RB2508 | 25 | 41 | 32 | 8 | 0.5 | 27.8 | 36.2 | 3.63 | 3.83 | 0.05 |
| RB3010 | 30 | 55 | 41.5 | 10 | 0.6 | 35.8 | 47.2 | 7.35 | 8.36 | 0.12 |
| RB3510 | 35 | 60 | 46.5 | 10 | 0.6 | 40.8 | 52.2 | 7.64 | 9.12 | 0.13 |
| RB4010 | 40 | 65 | 52 | 10 | 0.6 | 46.3 | 57.7 | 8.33 | 10.6 | 0.16 |
| RB4510 | 45 | 70 | 57.5 | 10 | 0.6 | 51.8 | 63.2 | 8.62 | 11.3 | 0.17 |
| RB5013 | 50 | 80 | 65 | 13 | 0.6 | 57.9 | 72.1 | 16.7 | 20.9 | 0.27 |
| RB6013 | 60 | 90 | 75 | 13 | 0.6 | 67.9 | 82.1 | 18 | 24.3 | 0.3 |
| RB7013 | 70 | 100 | 82.3 | 13 | 0.5 | 75.2 | 89.4 | 19.4 | 27.7 | 0.35 |
| RB8016 | 80 | 120 | 100 | 16 | 0.6 | 91.5 | 108.5 | 30.1 | 42.1 | 0.7 |
| RB9016 | 90 | 130 | 108 | 16 | 0.6 | 99.5 | 116.5 | 31.4 | 45.3 | 0.75 |
| RB10016 | 100 | 140 | 120.2 | 16 | 1 | 111.7 | 128.7 | 31.7 | 48.6 | 0.83 |
| RB10020 | 150 | 123 | 20 | 1 | 110.7 | 133.3 | 33.1 | 50.9 | 1.45 | |
| RB11012 | 110 | 135 | 121.8 | 12 | 0.6 | 116 | 127.5 | 12.5 | 24.1 | 0.4 |
| RB11015 | 110 | 145 | 126.5 | 15 | 0.6 | 118 | 135 | 23.7 | 41.5 | 0.75 |
| RB11020 | 110 | 160 | 133 | 20 | 1 | 120.7 | 143.3 | 34 | 54 | 1.56 |
| RB12016 | 120 | 150 | 132.5 | 16 | 0.5 | 125.4 | 139.6 | 24.2 | 43.2 | 0.72 |
| RB12025 | 120 | 180 | 148.3 | 25 | 1.5 | 134.2 | 162.4 | 66.9 | 100 | 2.62 |
| RB13015 | 130 | 160 | 143.1 | 15 | 0.6 | 136 | 150 | 25 | 46.7 | 0.72 |
| RB13025 | 130 | 190 | 158 | 15 | 1.5 | 143.9 | 172 | 69.5 | 107 | 2.82 |
| RB14016 | 140 | 175 | 154.8 | 16 | 0.6 | 146.3 | 163.3 | 25.9 | 50.1 | 1 |
| RB14025 | 140 | 200 | 168 | 25 | 1.5 | 153.9 | 128 | 74.8 | 121 | 2.96 |
| RB15013 | 150 | 180 | 164 | 13 | 0.6 | 156.9 | 171.1 | 27 | 53.5 | 0.68 |
| RB15025 | 150 | 210 | 180 | 25 | 1 | 165.9 | 194.1 | 76.8 | 128 | 3.16 |
| RB15030 | 150 | 230 | 188 | 30 | 1.5 | 166.8 | 209.2 | 100 | 156 | 5.3 |
| RB16025 | 160 | 220 | 188 | 25 | 1.5 | 173.9 | 202.1 | 81.7 | 135 | 3.14 |
| RB17020 | 170 | 220 | 192 | 20 | 1.5 | 180.7 | 203.3 | 29 | 62.1 | 2.21 |
| RB18025 | 180 | 240 | 208 | 25 | 1.5 | 193.9 | 222.1 | 84 | 143 | 3.44 |
| RB19025 | 190 | 240 | 212 | 25 | 1 | 200.7 | 223.3 | 41.7 | 82.9 | 2.99 |
| RB20025 | 200 | 260 | 230 | 25 | 1.5 | 215.9 | 244.1 | 84.2 | 157 | 4 |
| RB20030 | 200 | 280 | 240 | 30 | 2 | 218.8 | 261.2 | 114 | 200 | 6.7 |
| RB20035 | 200 | 295 | 247.7 | 35 | 2 | 226.5 | 268.9 | 151 | 252 | 9.6 |
| RB22025 | 220 | 280 | 248.5 | 25 | 2 | 234.4 | 262.6 | 92.3 | 171 | 4.1 |
| RB24025 | 240 | 300 | 269 | 25 | 1.5 | 254.9 | 283.1 | 68.3 | 145 | 4.5 |
| RB25025 | 250 | 310 | 277.5 | 25 | 2 | 263.4 | 291.6 | 69.3 | 150 | 5 |
| RB25030 | 250 | 330 | 287.5 | 30 | 2.5 | 270.5 | 304.5 | 126 | 244 | 8.1 |
| RB25040 | 250 | 355 | 300.7 | 40 | 2.5 | 278.1 | 323.3 | 195 | 348 | 14.8 |
| RB30025 | 300 | 360 | 328 | 25 | 1.5 | 313.9 | 342.1 | 76.3 | 178 | 5.9 |
| RB30035 | 300 | 395 | 345 | 35 | 2.5 | 322 | 368 | 183 | 367 | 13.4 |
| RB30040 | 300 | 405 | 351.6 | 40 | 2.5 | 326 | 377 | 212 | 409 | 17.2 |
| RB35020 | 350 | 400 | 373.4 | 20 | 2.5 | 363 | 383 | 54.1 | 143 | 3.9 |
| RB40035 | 400 | 480 | 439 | 35 | 2.5 | 422 | 459 | 156 | 370 | 14.5 |
| RB40040 | 400 | 510 | 451 | 40 | 2.5 | 428 | 479 | 241 | 531 | 23.5 |
| RB45025 | 450 | 500 | 472 | 25 | 1 | 464 | 484 | 61.7 | 182 | 6.6 |
| RB50025 | 500 | 550 | 524.2 | 25 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
| RB50040 | 500 | 600 | 548.8 | 40 | 2.5 | 526 | 572 | 239 | 607 | 26 |
| RB50050 | 500 | 625 | 561.6 | 50 | 2.5 | 536 | 587 | 267 | 653 | 41.7 |
| RB60040 | 600 | 700 | 647 | 40 | 3 | 627 | 673 | 264 | 721 | 29 |
| RB70045 | 700 | 815 | 753.5 | 45 | 3 | 731 | 777 | 281 | 836 | 46 |
| RB80070 | 800 | 950 | 868.1 | 70 | 4 | 836 | 900 | 468 | 1330 | 105 |
| RB90070 | 900 | 1050 | 969 | 70 | 4 | 937 | 1001 | 494 | 1490 | 120 |
| RB1000110 | 1000 | 1250 | 1114 | 110 | 5 | 1057 | 1171 | 1220 | 3220 | 360 |
| RB1250110 | 1250 | 1500 | 1365 | 110 | 5 | 1308 | 1423 | 1350 | 1970 | 440 |
